TOOL ROOM INFRASTRUCTURE

CNC Milling CNC Lathe :

Card image cap

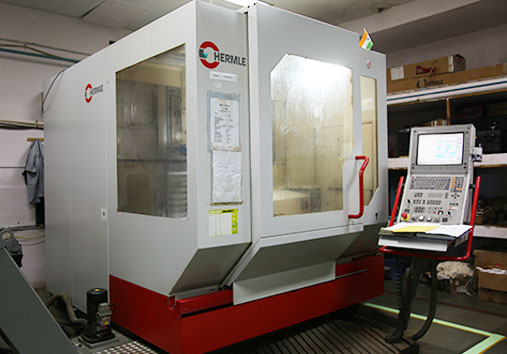

HERMLE – 5 Axis Milling Machine
  • Model - U 740 with ITNC 530 Heidenhain Control
  • Table Load - 700 kg
  • Speed - 20 to 12000 rpm, 16 ATC
  • Travel - 740 x 500 x 500
  • Clamping Surface - 900 x 500
  • B axis Swivel - 5° / + 95°
  • Main Spindle - Manual Swivel - 5° / + 95°
  • Positional Tolerance - 0.010 mm
Card image cap

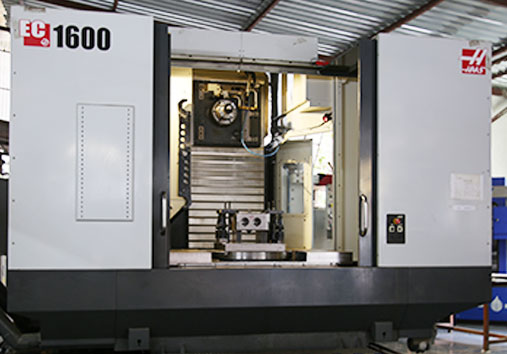

HAAS - 4 Axis Horizontal Machining Centre
  • Model : 1600, with rotary axis
  • Traverse : 1626 x 1270 x 813 mm
  • Speed : 6000 rpm
  • Capacity : 4536 kg
  • Tool Changer : 31 Side mount
  • Positional Accuracy : ± 0.008 mm
  • Hass Controller
  • Repeatability - ± 0.005 / mm
Card image cap

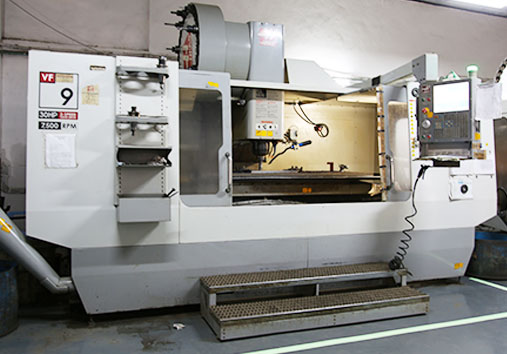

HAAS - 3 Axis Vertical Machining Centre
  • Model - VF - 9 /50
  • Travel - 2134 X 1016 x 762 mmg
  • Table - 2134 X 914 mm
  • Table Load - 1.8 T
  • Spindle Speed - 7500 rpm (max)
  • Taper - 50, 30 ATC
  • Positional Accuracy - ± 0.0076 mm
  • Repeatability - ± 0.005 / mm
Card image cap

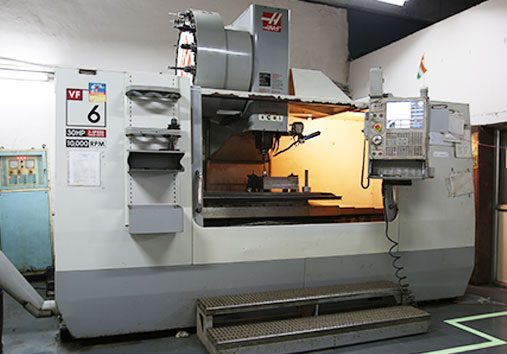

HAAS - 3 Axis Vertical Machining Centre
  • Model - VF - 6 /50
  • Travel - 1626 X 813 x 762 mm
  • Table - 1626 X 711
  • Table Load - 1.8 T
  • Spindle Speed - 7500 rpm (max)
  • Taper - 50, 30 ATC
  • Positional Accuracy - ± 0.0076 mm
  • Repeatability - ± 0.005 / mm
Card image cap

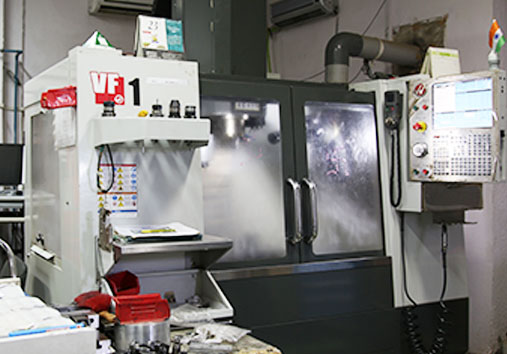

HAAS - 3 Axis Vertical Machining Centre
  • Model – VF1
  • Traverse - X – 508 mm
  • Y – 406 mm/li>
  • Z – 508 mm
  • Table - 660 x 356
  • Spindle Speed - 8100 rpm, 30 HP
  • Repeatability - ± 0.005 / mm
Card image cap

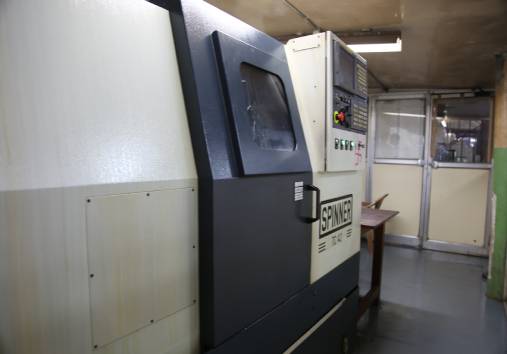

CNC Lathe
  • Model - SPINNER TC 42 CNC LATHE
  • Control - 21i – TB – Fanuc
  • Max Dia. - 280 mm
  • Centre Dist. - 550 mm
  • Swing Dia. - 400 mm
Card image cap

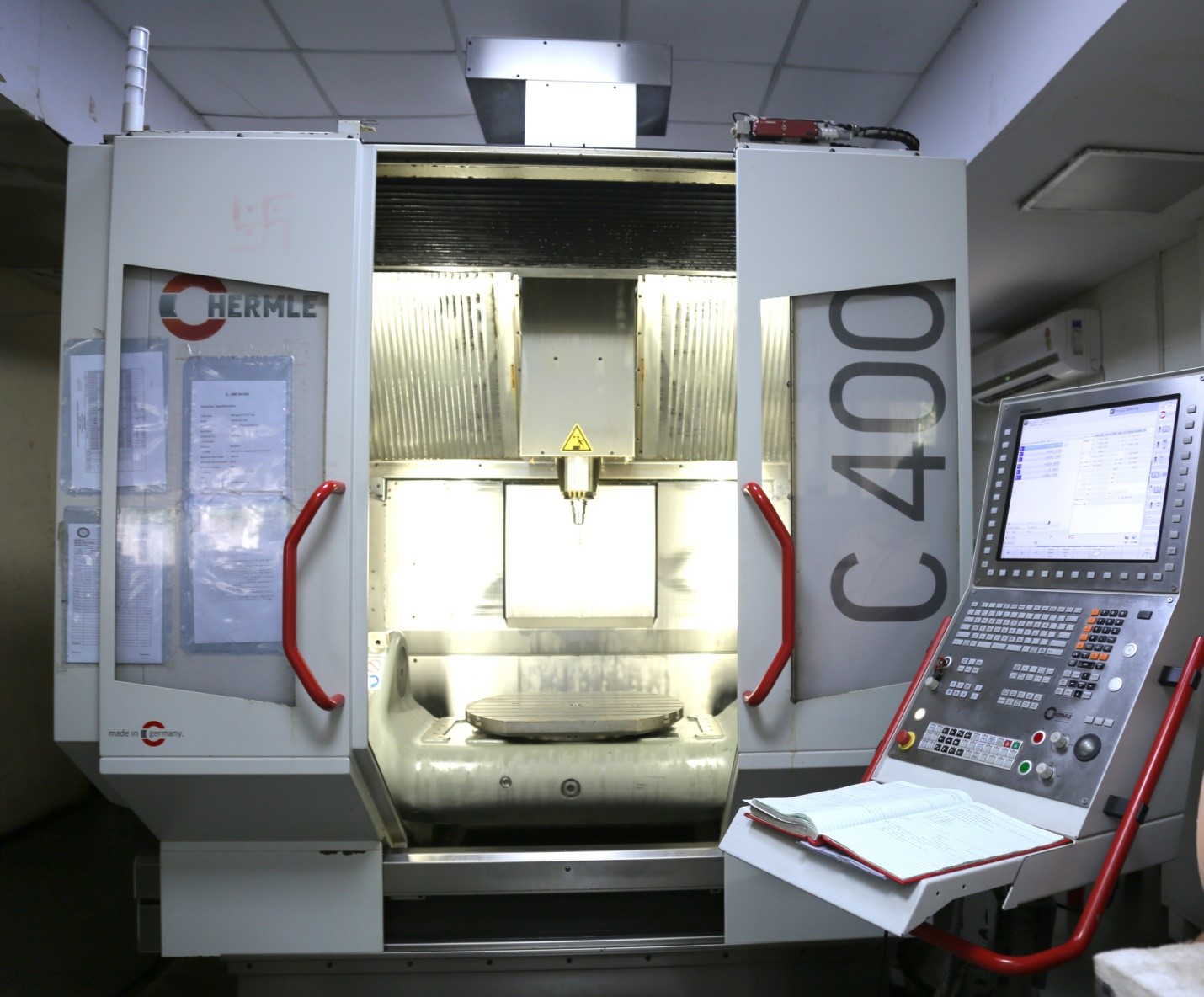

Hermle 5 Axis Vertical Milling Machine
  • Model - C400 with TNC 640 Heidenhein Control
  • Traverse - 850mm X 700mm X 500mm
  • Table Size - Ø650 mm
  • Spindle speed - 15000 rpm, 38 ATC
  • Axis Swivel - +91° / -139°
  • Table Load - 600 kg for 4th & 5th axis
  • Positional Tolerance - ±0.008 mm
Card image cap

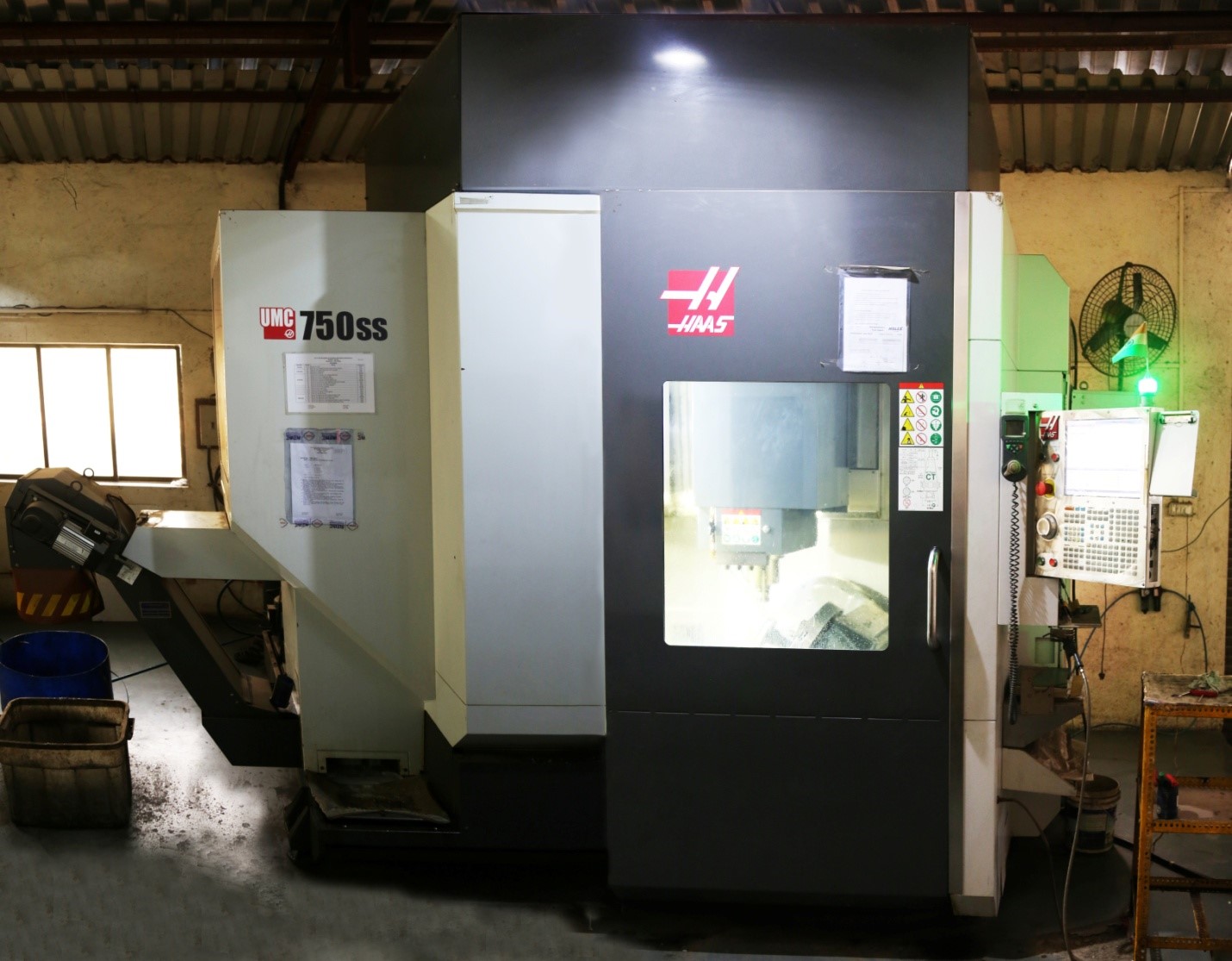

HAAS- 5 axis Vertical Milling Machine
  • Model - UMC-750SS
  • Traverse - 762 mm X 508 mm X 508 mm
  • Clamping Surface - Ø500mm
  • Spindle Speed - 12000 rpm
  • Swiveling Range - -35°/120° (B axis)
  • Max Table Load - 300 Kg
  • Taper - CT or BT 40
  • Repeatability - ±0.005/mm
Card image cap

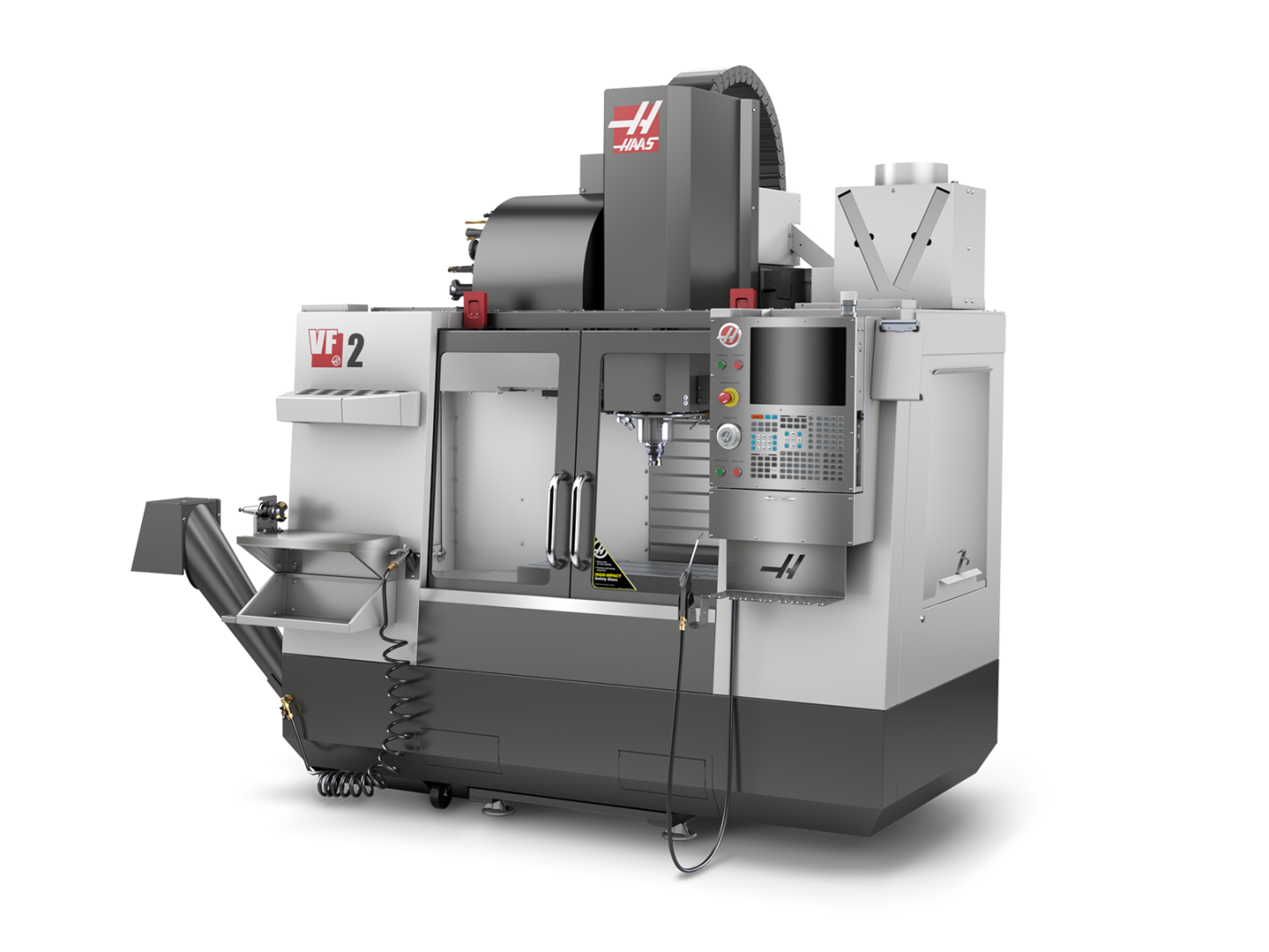

HAAS 3 Axis Vertical Milling Machine
  • Model - VF2
  • Traverse - 762mm x 406mm x 508mm
  • Table Dimension - 914mm x 356mm
  • Spindle Speed - 8100 rpm
  • Max Table Load - 1361 Kg
  • Taper - CT or BT 40
  • Repeatability - ±0.005/mm
Card image cap

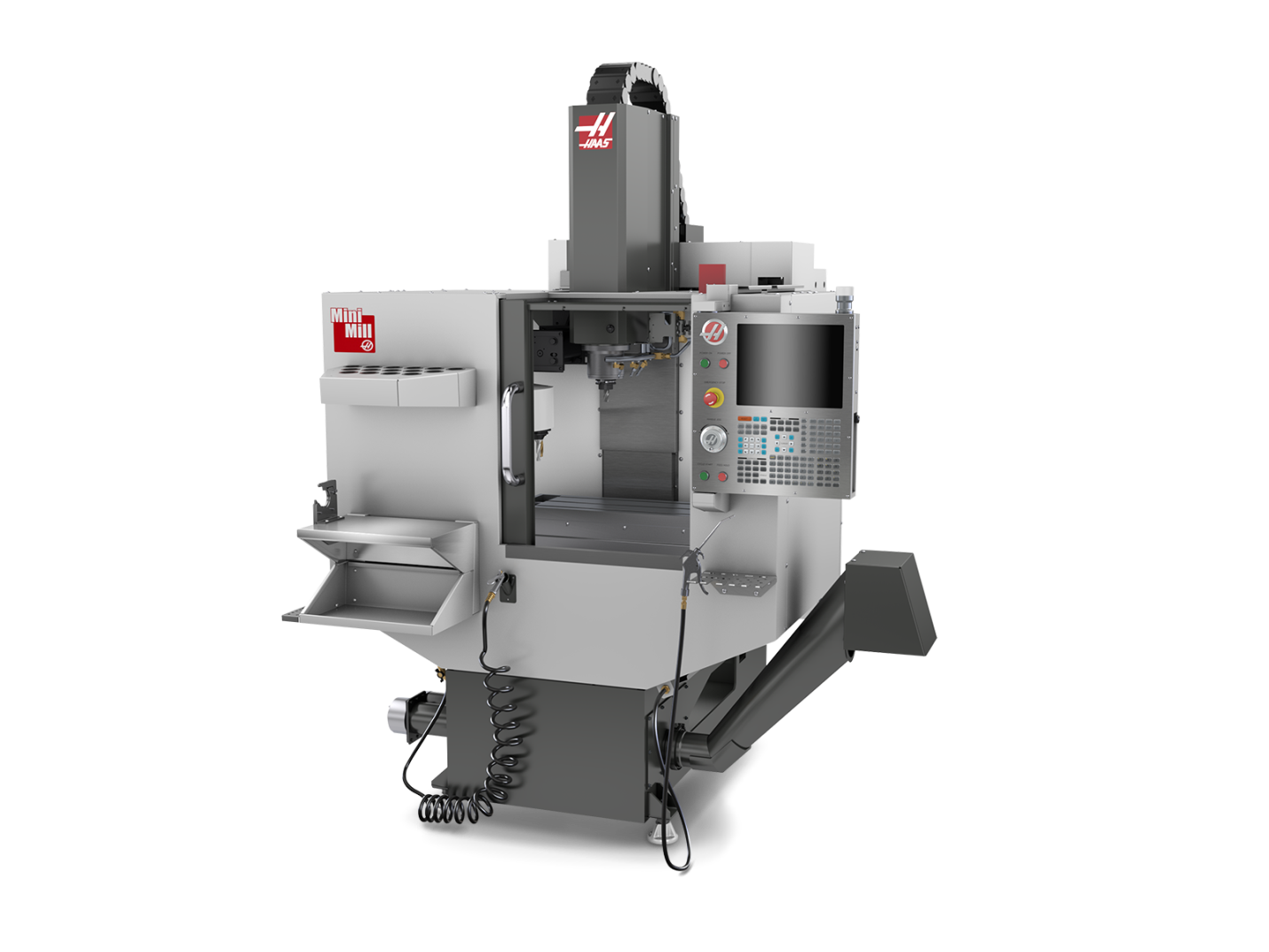

HAAS 3 Axis Vertical Milling Machine
  • Model - Hass Mini Mill
  • Traverse - 406mm x 305mm x 254mm
  • Table Dimension - 914mm x 305mm (Work area : 730mm x 305mm)
  • Spindle Speed - 6000 rpm
  • Max Table Load - 227 kg
  • Taper - CT or BT 40
  • Repeatability - ±0.005/mm

EDM Spark Erosion :

Card image cap

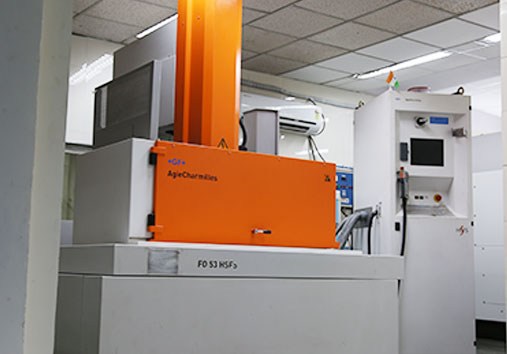

CHARMILLES CNC EDM MACHINE
  • Model - ROBOFORM 53P
  • Transverse – 600 x 400 x 400mm
  • Max. Work Piece Size – 1150 x 800 x 500mm
  • Max. Work Piece wt. – 800kg
  • Optimum Surface Finish – CHO/Ra – 0.1 µ m
  • Measuring resolution - 0.5 µ m
  • Max. Electrode Wt. (Without ‘C’ Axis) – 100kg
  • Max. Electrode Wt. with ‘C’ Axis – 25kg
Card image cap

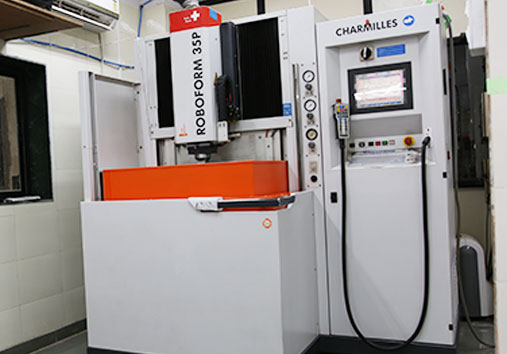

CHARMILLES CNC EDM MACHINE
  • Model - ROBOFORM 35P
  • Transverse – 350 x 2500 x 300mm
  • Work Table Size – 500 x 400 mm
  • Max. Work Piece Wt. – 500kg
  • Dim. of Dielectric Tank – 800 x 550 x 370
  • Positioning Resolution – 0.5 micron
  • Surface Finish – Ra-0.1 micron
  • Max. Electrode Wt. with ‘C’ Axis – 50 kg
Card image cap

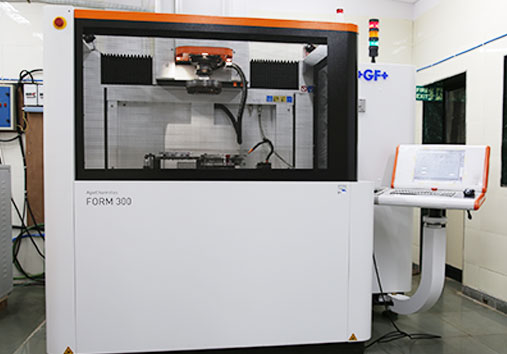

AGIE CHARMILLES CNC EDM MACHINE
  • Model - FORM 300
  • Transverse – 600 x 400 x 450 mm
  • Work Table Size – 750 x 600 mm
  • Max. Work Piece Wt. – 1600 kg
  • Dim. of Dielectric Tank – 1220 x 870 x 470
  • Positioning Resolution – 0.5 micron
  • Surface Finish – Ra-0.1 micron
  • WINDOWS Operating system

Wire Cut EDM :

Card image cap

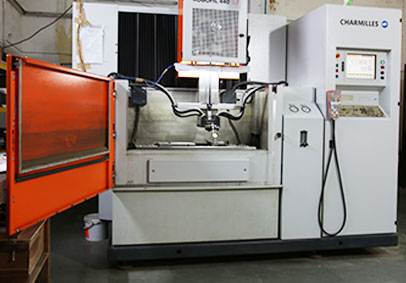

WIRE EDM CHARMILLES
  • Model - Robofil 440 SLP
  • Max. Work Piece Size - 1200 x 700 x 400mm
  • Max. Work Piece Dimensions – 200 mm
  • Max. Work Piece Weight – 1.5 Ton
  • XYZ Travel – 550 x350 x 400
  • UV Travel - 550 x 350
  • Max. Taper – ±30/400
  • Cutting Speed – 300 mm2 / Min.
  • Min. Finishing - 0.22 µm Ra
  • Measurement Resolution – 0.5 µm
Card image cap

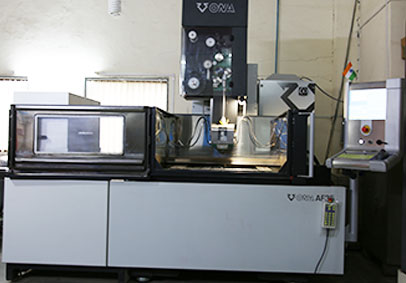

ONA CNC Wire EDM
  • Model - AF35
  • Traverse - 600 x 400 x 400 (z axis)
  • Work Area - 1060 x 750 x 400
  • Cutting Rate - 180mm2/min
  • Capacity - 1500kg
  • Positional Tolerance - ±0.005 μm /300mm

Gear Hobbing :

Card image cap

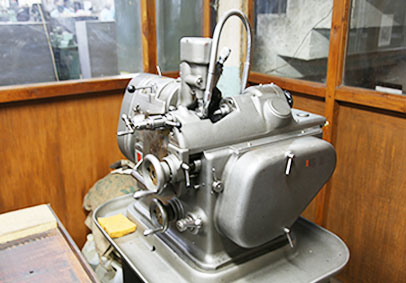

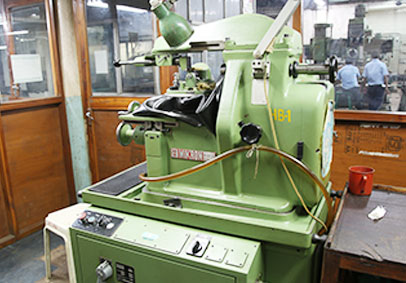

Gear Hobbing
Card image cap
Micron Gear Hobbing

OPG Grinding :

Card image cap

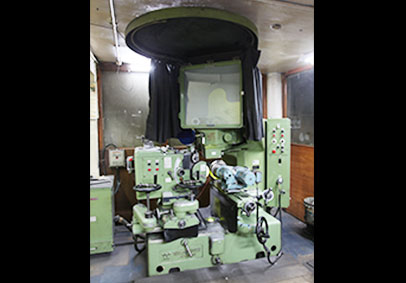

OPTICAL PROFILE GRINDING
  • Model - WASINO JAPAN 125A – 10
  • Grinding Dimension - 250 x 80 x 120 mm
  • Projector Screen size - 535 x 515mm
  • Work Table Cross travel - 80 mm
  • Range of Reciprocating Stroke of wheel head: 0 - 120
Card image cap

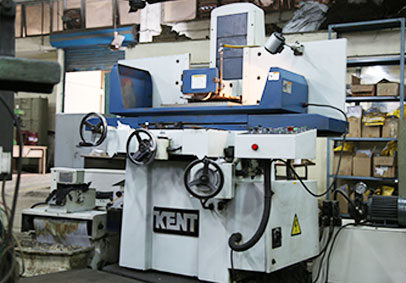

KENT Precision surface Grinding
  • Model - KGS – 1020 AHD
  • Overall grinding size - 500 x 250 x 400 ht.
Card image cap

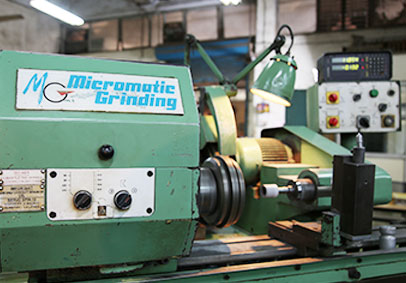

MICROMATIC Universal Cylindrical Grinding
  • Model - GC 260 x 400
  • Accuracy: Roundness on Live Spindle - 0.0005 MM
  • Internal Grinding Min. - ɸ 3 MM
  • CTable Travel - 450 MM

Jig Boring Conventional Machines :

Card image cap

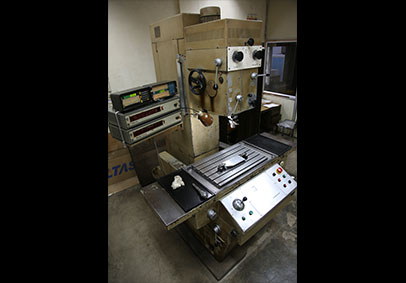

Jig Boring
Card image cap

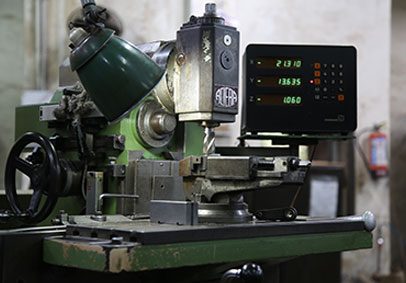

Conventional Milling
Card image cap

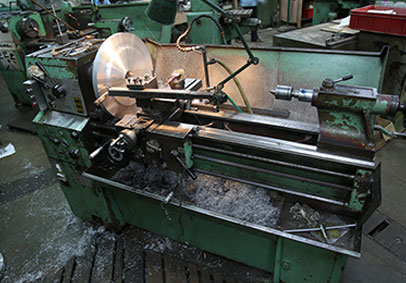

Conventional Lathe
Card image cap

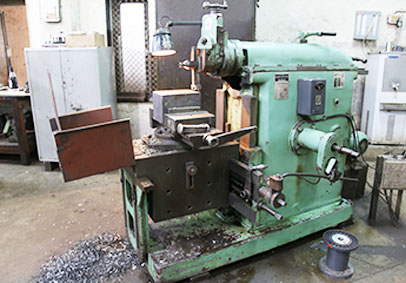

Shaper
Card image cap

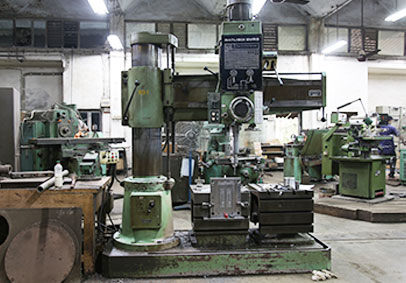

Radial Drilling
