EMI-EMC Testing

Electromagnetic Immunity Test

Test Standard
Electrostatic Discharge Test
CD: 30 kV, AD: 30 kV
IEC/EN 61000-4-2
Radiated Susceptibility Test
1-30 V/m, 80 MHz - 6 GHz
IEC/EN 61000-4-3
IEC/EN 61000-4-20
Electrical Fast Transient/Burst Test
0-4kV
IEC/EN 61000-4-4
Surge Immunity Test / Telecom Surge
Immunity Test 0 - 7 kV
IEC/EN 61000-4-5
Conducted RF Susceptibility Test
1-10 V, 150 kHz — 80 MHz
IEC/EN 61000-4-6
Power Frequency Magnetic Field Test
3 A/m - 30 A/m
IEC/EN 61000-4-8
Pulse Frequency Magnetic Field Test
100 A/m — 1000 A/m
IEC/EN 61000-4-9
Damp Oscillatory Magnetic Field Test
100 A/m
IEC/EN 61000-4-10
AC Voltage Dips, Short Interruption
& Voltage Variation Test 0-100 %
IEC/EN 61000-4-11
Ring Wave Test
0-6kV
IEC/EN 61000-4-12
Harmonics and Inter-harmonics
Immunity Tests
IEC/EN 61000-4-13
Voltage Fluctuation Immunity Test IEC/EN 61000-4-14
Ripple on d.c. input power port
Immunity Test
IEC/EN 61000-4-17
Slow Damp Oscillatory Test
0 - 2.5kV
IEC/EN 61000-4-18
Fast Damp Oscillatory Test
0 - 4kV
IEC/EN 61000-4-18
Phase unbalance, Immunity Test IEC/EN 61000-4-27
Variation of Power Frequency,
Immunity Test
IEC/EN 61000-4-28
DC Voltage Dips, Short Interruption
& Voltage Variation Test 0-100 %
IEC/EN 61000-4-29
Impulse Voltage Test
0.5 — 12 kV
IEC/EN 60255-5

Electromagnetic Emission Test

Test Standard
Conducted Emission Test
150 kHz — 30 MHz

Radiated Emission Test
30 MHz — 6 GHz
CISPR 11 EMl-Industrial, Scientific &
Medical Equipment
CISPR 12 EMI- Automotive Equipment
CISPR 13 EMI- Sound & Television
Broadcast Equipment
CISPR 14 EMI- Household Appliances &
Electric Tools & Equipments
CISPR 15 EMI- Lighting Equipment
CISPR 22 EMI - Information Technology Equipment
CISPR 25 EMI - Automotive Equipment
CISPR 32 EMI - Multimedia Equipment
Disturbance Power Measurement
test 30 MHz-300 MHz
CISPR 14-1/ EN55014-1
Harmonic Emission Test
up to 40" Harmonic
IEC/EN 61000-3-2, IS 14700 (Part 3/Sec 2)
Flicker Emission IEC/EN 61000-3-3

EMI-EMC Testing as per Particular
Product Standards

Product Standard
Electromagnetic Compatibility (EMC) - Part 6-1:
Generic Standards - Immunity for Residential,
Commercial and Light-Industrial Environments
IEC/EN 61000-6-1,
IS 14700 (Part 6/Sec 1)
Electromagnetic Compatibility (EMC) - Part 6-2:
Generic Standards - Immunity for Industrial
Environments
IEC/EN 61000-6-2,
IS 14700 (Part 6/Sec 2)
Electromagnetic Compatibility (EMC) - Part 6-3:
Generic Standards - Emission Standard for
Residential,Commercial and light-industrial
environments
IEC/EN 61000-6-3,
1S 14700 (Part 6/Sec 3)
Electromagnetic compatibility (EMC) - Part 6-4:
Generic standards - Emission Standard for
Industrial Environments
IEC/EN 61000-6-4,
IS 14700 (Part 6/Sec 4)
Electrical equipment for measurement, Control and
Laboratory use — EMC Requirements — Part 1:
General Requirements Electrical Equipment
for Measurement, Control and Laboratory use
IEC/EN 61326-1
Medical Electrical Equipment - Part 1-2: General
Requirements for Basic Safety and Essential
Performance -Collateral Standard: Electromagnetic
Disturbances - Requirements and Tests
IEC/EN 60601-1-2
Measuring Relays and Protection Equipment
- Part 26: Electromagnetic Compatibility
Requirements
IEC/EN 60255-26
Uninterruptible Power Systems (UPS) - Part 2:
Electromagnetic Compatibility (EMC) Requirements
IEC/EN 62040-2
Equipment for General Lighting Purposes -
EMC Immunity Requirements
IEC/EN 61547
Information Technology Equipment - Immunity
Characteristics - Limits and Methods of Measurement
CISPR 24/EN55024,
IS 15039
Electromagnetic Compatibility Limits & Methods of
Measurements of Radio Disturbance Characteristics
CISPR 13
Electromagnetic compatibility. Product Family
Standard for Audio,Video, Audio-Visual and
Entertainment Lighting Control Apparatus
for Professional use.(Emissions)
EN 55103-2
Electromagnetic Compatibility and Radio Spectrum
Matters (ERM);Telecommunication Network
Equipment; Electro Magnetic Compatibility
(EMC) Requirements
EN 300386
Limits and Methods of Measurement of Radio
Disturbance Characteristics of
Electrical Lighting and Similar Equipment
CISPR 15/ EN 55015
Electromagnetic compatibility - Requirements for
Household Appliances, Electric Tools
and Similar Apparatus - Part 1: Emission
CISPR 14-1/EN 55014-1
Electromagnetic Compatibility - Requirements
for Household Appliances, Electric Tools
and Similar Apparatus Part 2: Immunity
— Product Family Standard
CISPR 14-2/EN 55014-2
Electromagnetic Compatibility
of Multimedia Equipment.
Emission Requirements
CISPR - 32 / EN 55032

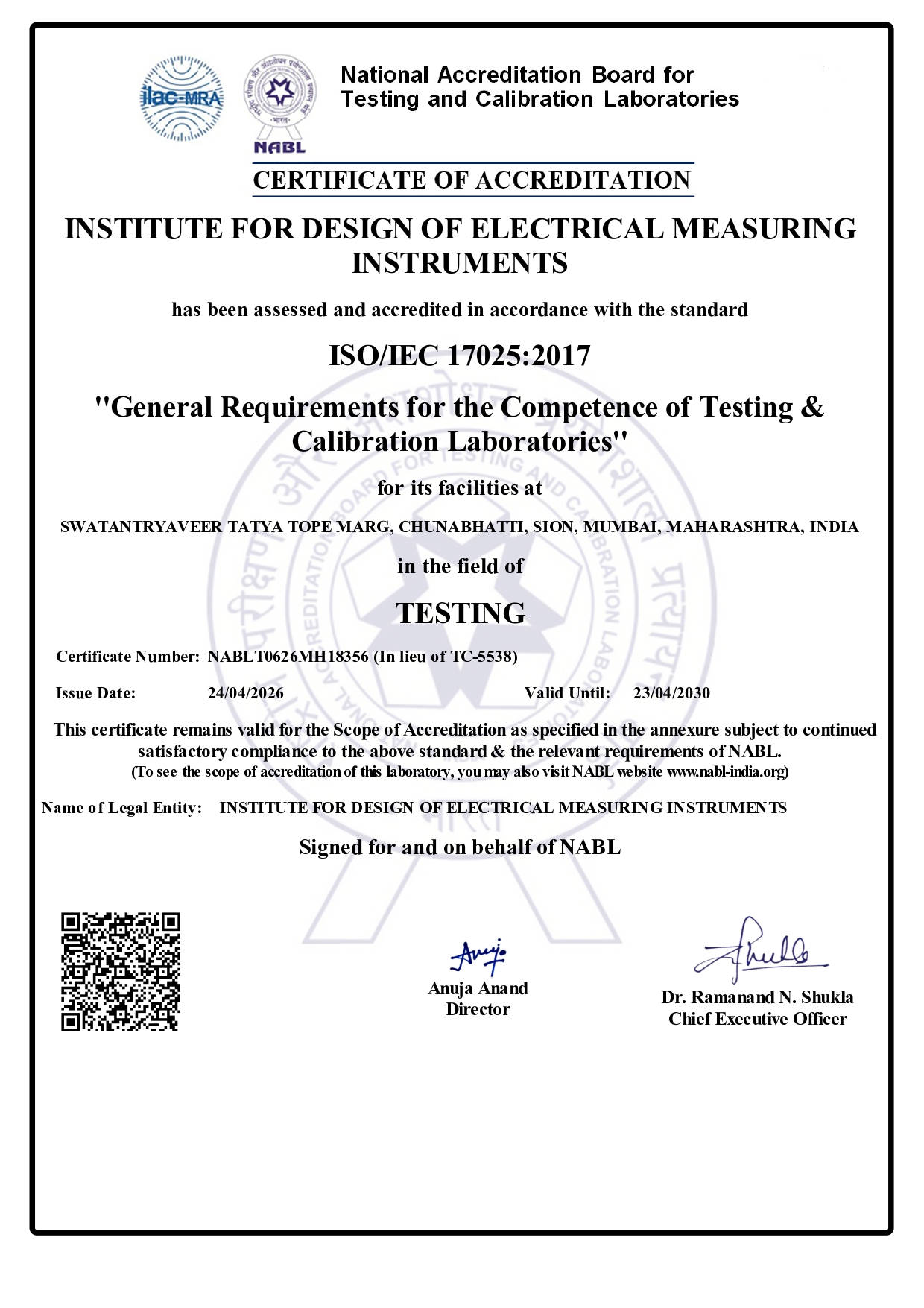

Click here for Scope of Accreditation and then click on TC-5538

Click here for Testing Charges

Contact:

Mr. C.M.Patil Assistant Director(Testing lab) E-mail : etl@idemi.org Phone No : 022-24050301/02/03/04 ext 235 Mobile No: 9324350952 | 9372330934 (Lab Mobile)
