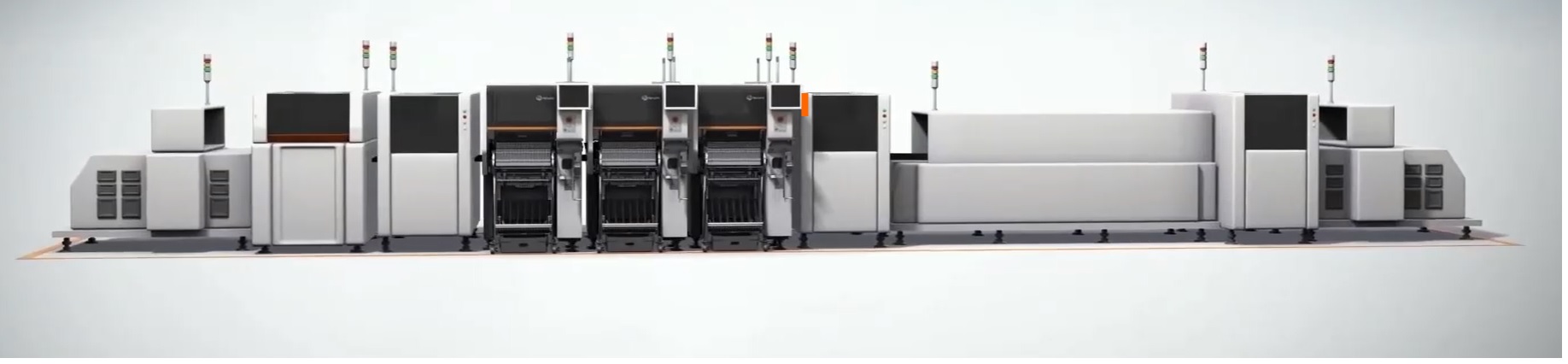

Fully Automatic SMT Assembly Setup

Following are the fetures :

  • Placement Speed: 40,000 Components Per Hour
  • Placement Accuracy: ±40µm @ ±3σ
  • PCB thickness: 0.38 to 4.2 mm
  • 6 Sigma Level of High Quality Printing
  • Repeatability: ±25um @ 6 sigma
  • 23" and 29" Stencils handled as standard
  • Alignment Accuracy: ±12.5um @ 6 sigma
  • Universal SMEMA interface
  • Screen Printer with Top & bottom camera for high precision
  • Screen Printer with printing speed 5 mm/ sec to 250 mm/sec
  • Reflow oven with top 7 & bottom 7 heating zones for good quality of solder joints
  • 10 nozzles pick and place operations

Contact:

Mr. Shripankh Patil Assistant Director E-mail : designanddevelopment@idemi.org Phone No : 022-24050301/02/03/04 ext 238 Mobile No: 8652892469
